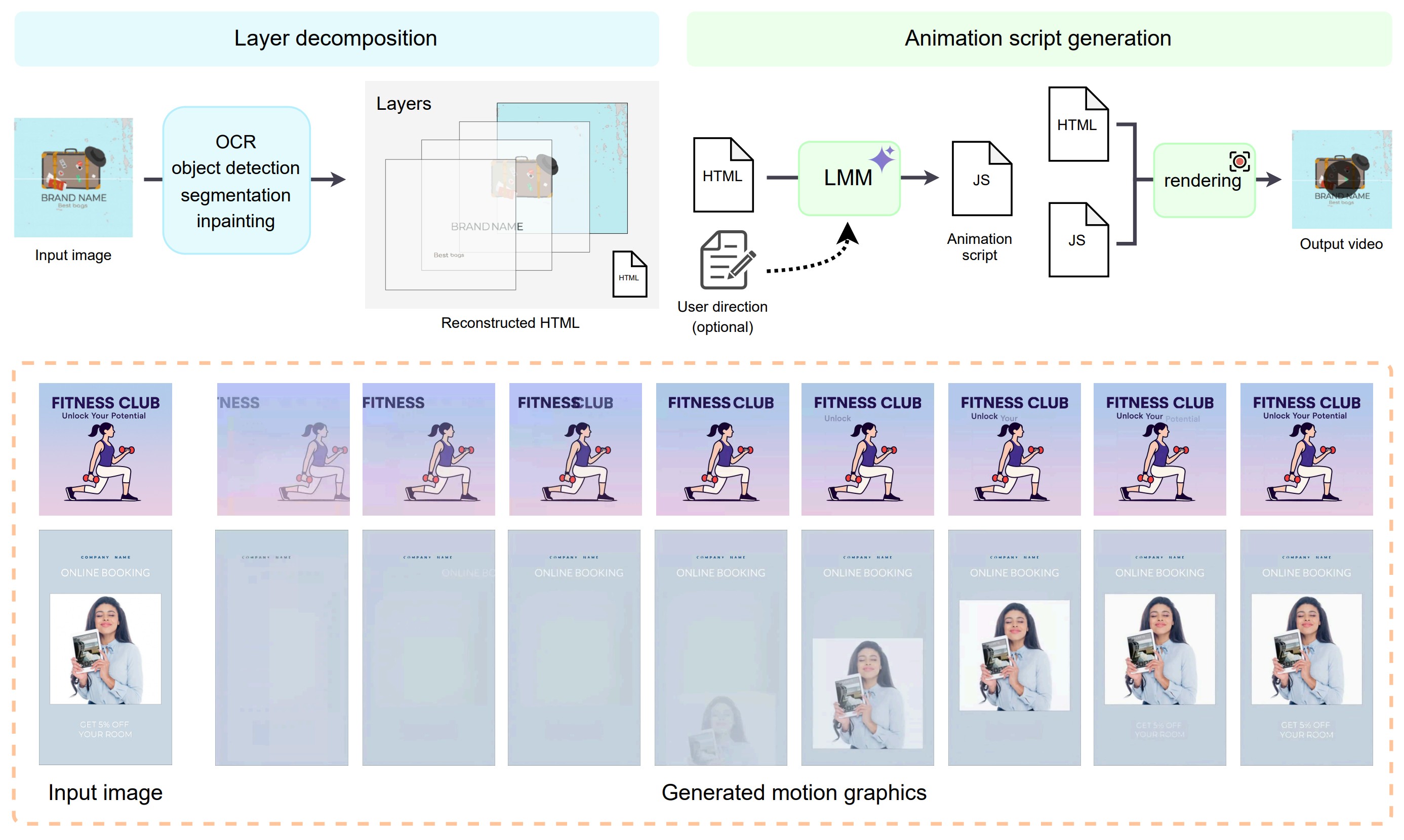

This study proposes MG-Gen, a framework that generates motion graphics directly from a single raster image preserving input content consistency with dynamic text motion. MG-Gen decomposes a single raster image into layered structures represented as HTML, generates animation scripts for each layer, and then renders them into a video. We first decompose an input image into layer elements such as text, objects, and background components by performing text detection, object detection, object segmentation, and image inpainting, then reconstruct the input image as layered HTML data. Subsequently, we generate an executable animation script for these HTML data using a Large Multimodal Model (LMM). MG-Gen fundamentally differs from the general image-to-video methods and is naturally suited for generating motion graphics, which require text readability and input consistency. We confirmed MG-Gen generates dynamic motion graphics while preserving text readability and fidelity to the input conditions, whereas state-of-the-art image-to-video generation methods struggle with them.

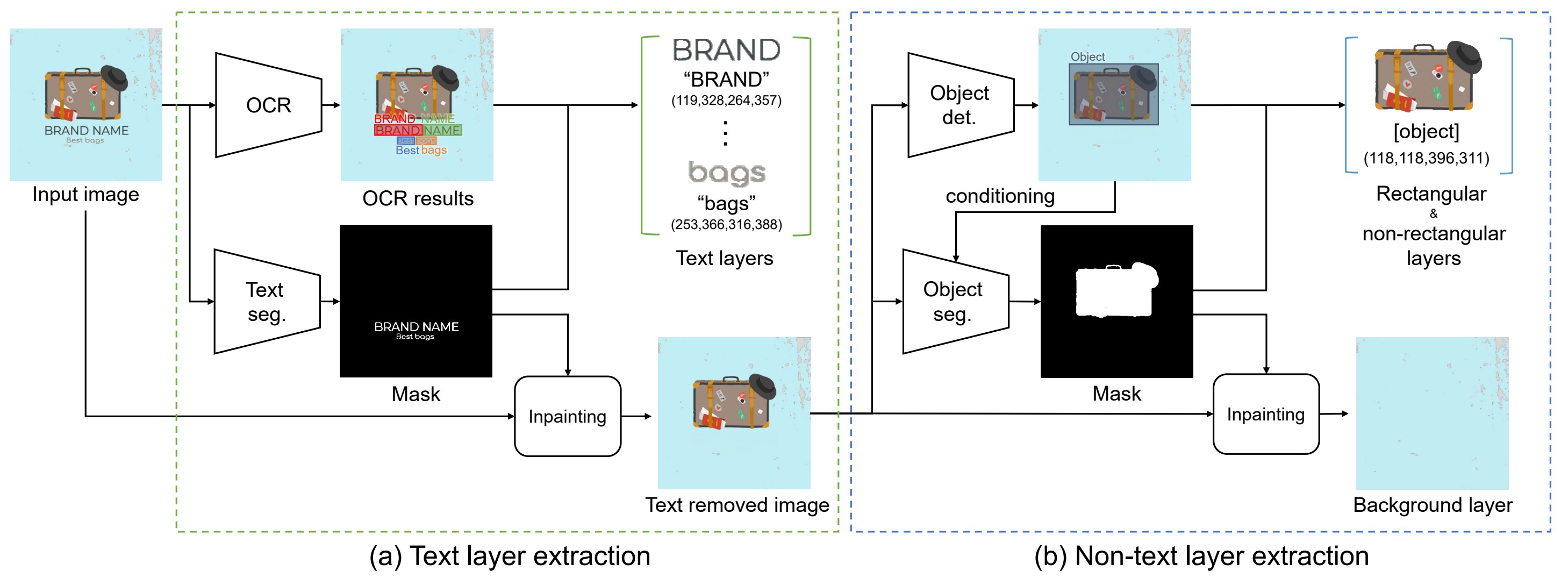

MG-Gen first decomposes an input image into layer-wise components using an OCR, object detection, object segmentation, and image inpainting then reconstructs the extracted layers as HTML data, which appears identical to the input image. Subsequently, it generates executable animation script for the HTML using a large multimodal model, specifically Gemini, which has shown high coding capabilities, coupled with its advanced reasoning abilities. The details of layer decomposition are as follows. First, only text layers are extracted using an OCR model and a text stroke segmentation model, Hi-SAM. Next, non-text layers are extracted using object detection model, YOLO, and segmentation model, SAM. Finally, an image inpainting model is applied to generate the background behind the extracted components, creating a separate background layer. After the all layer decomposition, we reconstruct the layer-decomposed data into HTML.

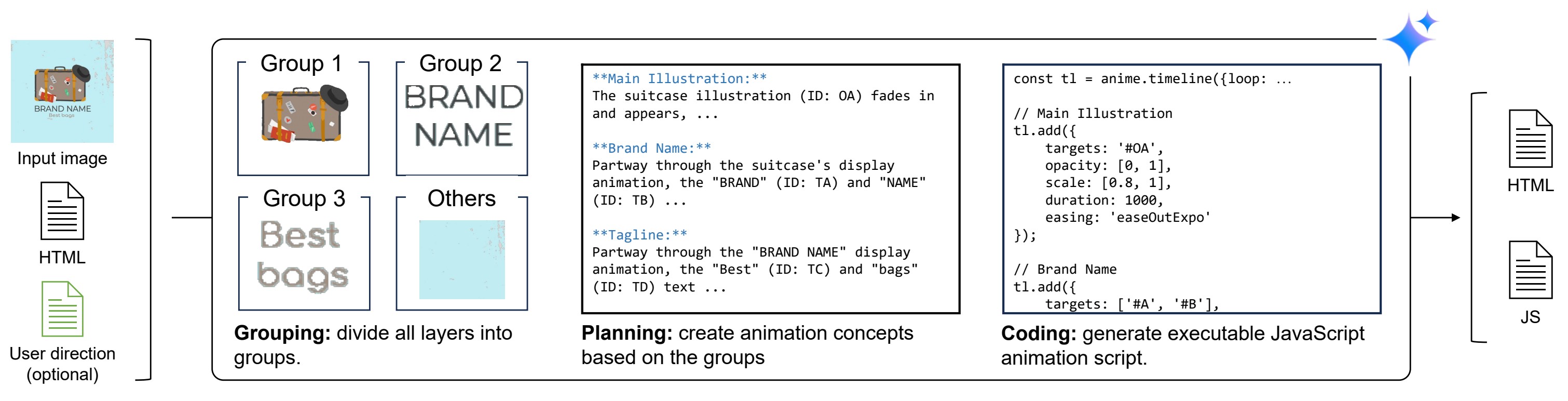

MG-Gen also generates an executable JavaScript animation script for the reconstructed HTML data using an LMM. Animation script generation pipeline consist of three main process: layer grouping, animation planning, and script coding. Grouping: The model first organizes the input HTML's layers into distinct clusters to understand its structure. Planning: Next, the model creates a detailed animation plan for each group, outlining the sequence and style of animations. Coding: Finally, the model generates an executable JavaScript animation script using Anime.js based on the plan. Once the animation script is generated, the animation script and HTML are rendered on a web browser to obtain a video file.
